Page 28 - Demo

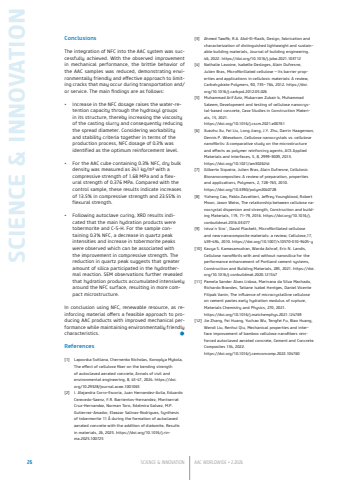

SCIENCE & INNOVATION26 SCIENCE & INNOVATION AAC WORLDWIDE %u2022 2.2026ConclusionsThe integration of NFC into the AAC system was successfully achieved. With the observed improvement in mechanical performance, the brittle behavior of the AAC samples was reduced, demonstrating environmentally friendly and effective approach to limiting cracks that may occur during transportation and/or service. The main findings are as follows:%u2022 Increase in the NFC dosage raises the water-retention capacity through the hydroxyl groups in its structure, thereby increasing the viscosity of the casting slurry and consequently reducing the spread diameter. Considering workability and stability criteria together in terms of the production process, NFC dosage of 0.3% was identified as the optimum reinforcement level.%u2022 For the AAC cube containing 0.3% NFC, dry bulk density was measured as 341 kg/m3 with a compressive strength of 1.68 MPa and a flexural strength of 0.376 MPa. Compared with the control sample, these results indicate increases of 13.5% in compressive strength and 23.55% in flexural strength.%u2022 Following autoclave curing, XRD results indicated that the main hydration products were tobermorite and C-S-H. For the sample containing 0.3% NFC, a decrease in quartz peak intensities and increase in tobermorite peaks were observed which can be associated with the improvement in compressive strength. The reduction in quartz peak suggests that greater amount of silica participated in the hydrothermal reaction. SEM observations further revealed that hydration products accumulated intensively around the NFC surface, resulting in more compact microstructure.In conclusion using NFC, renewable resource, as reinforcing material offers a feasible approach to producing AAC products with improved mechanical performance while maintaining environmentally friendly characteristics. %u25cfReferences[1] Lapovska Svitlana, Chernenko Nicholas, Konoplya Mykola, The effect of cellulose fiber on the bending strength of autoclaved aerated concrete, Annals of civil and environmental engineering, 8, 45-47, 2024. https://doi.org/10.29328/journal.acee.1001065[2] I. Alejandra Corro-Escoria, Juan Hernandez-Avila, Eduardo Cerecedo-Saenz, F.R. Barrientos-Hernandez, Montserrat Cruz-Hernandez, Norman Toro, Edelmira Galvez, M.P. Gutierrez-Amador, Eleazar Salinas-Rodrigues, Synthesis of tobermorite 11 %u00c5 during the formation of autoclaved aerated concrete with the addition of diatomite, Results in materials, 26, 2025. https://doi.org/10.1016/j.rinma.2025.100725[3] Ahmed Tawfik, R.A. Abd-El-Razik, Design, fabrication and characterization of distinguished lightweight and sustainable building materials, Journal of building engineering. 46, 2022. https://doi.org/10.1016/j.jobe.2021.103712[4] Nathalie Lavoine, Isabelle Desloges, Alain Dufresne, Julien Bras, Microfibrillated cellulose %u2013 Its barrier properties and applications in cellulosic materials: A review, Carbohydrate Polymers, 90, 735%u2013 764, 2012. https://doi.org/10.1016/j.carbpol.2012.05.026[5] Muhammad Arif Aziz, Mukarram Zubair b, Muhammad Saleem, Development and testing of cellulose nanocrystal-based concrete, Case Studies in Construction Materials, 15, 2021.https://doi.org/10.1016/j.cscm.2021.e00761[6] Xuezhu Xu, Fei Liu, Long Jiang, J.Y. Zhu, Darrin Haagenson, Dennis P. Wieseborn, Cellulose nanocrystals vs. cellulose nanofibrils: A comparative study on the microstructure and effects as polymer reinforcing agents, ACS Applied Materials and Interfaces, 5, 8, 2999-3009, 2013.https://doi.org/10.1021/am302624t[7] Gilberto Siqueira, Julien Bras, Alain Dufresne, Cellulosic Bionanocomposites: A review of preparation, properties and applications, Polymers, 2, 728-765, 2010.https://doi.org/10.3390/polym2040728[8] Yizheng Cao, Pablo Zavattieri, Jeffrey Youngblood, Robert Moon, Jason Weiss, The relationship between cellulose nanocrystal dispersion and strength, Construction and building Materials, 119, 71-79, 2016. https://doi.org/10.1016/j.conbuildmat.2016.03.077[9] Istva%u00b4n Siro%u00b4, David Plackett, Microfibrillated cellulose and new nanocomposite materials: a review, Cellulose,17, 459%u2013494, 2010. https://doi.org/10.1007/s10570-010-9405-y[10] Kavya S. Kamasamudran, Warda Ashraf, Eric N. Landis, Cellulose nanofibrils with and without nanosilica for the performance enhancement of Portland cement systems, Construction and Building Materials, 285, 2021. https://doi.org/10.1016/j.conbuildmat.2020.121547[11] Pamela Sander Alves Lisboa, Marinana da Silva Machado, Richardo Brandes, Tatiane Isabel Hentges, Daniel Vicente Filipak Vanin, The influence of microcrystalline cellulose on cement pastes early hydration modulus of rupture, Materials Chemistry and Physics, 270, 2021.https://doi.org/10.1016/j.matchemphys.2021.124769[12] Jie Zhang, Fei Huang, Yuchao Wu, Tengfei Fu, Biao Huang, Wendi Liu, Renhui Qiu, Mechanical properties and interface improvement of bamboo cellulose nanofibers reinforced autoclaved aerated concrete, Cement and Concrete Composites 134, 2022. %u00a0%u00a0https://doi.org/10.1016/j.cemconcomp.2022.104760
